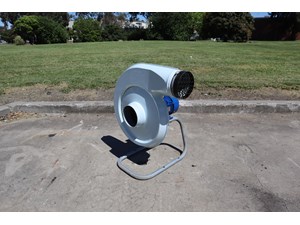

This blower is in great working condition. We have 2 of these blowers available for sale at the time of listing.
Driven by a large 3 Phase motor.
Make: Kongskilde
Model: TRL 55
Made in Denmark
SPECS
Inlet Diameter: 200mm
Outlet Diameter: 160mm
Voltage: 415V
Motor Power: 4kW
RPM: 2865
Overall Dimensions (mm): 700 w x 740 d x 840 h

KONGSKILDE TRL 55 CENTRIFUGAL BLOWER FAN - 4KW

In good condition.
The hopper is made out of stainless steel and it is mounted on a steel frame.
It also has a rotary valve feed attached to the bottom.

CYCLONE HOPPER LOADER WITH ROTARY VALVE FEEDER

Large industrial dust extraction system in excellent condition.This modular Micronair unit features a tall, enclosed filter housing with an elevated frame, allowing collected material to discharge into a bin beneath.
Make: Micronair
Features:
- Large modular filter housing
- Multiple internal cartridge filters
- Steel construction on raised support frame
Discharge Opening (mm): 580 x 530
Discharge Height (mm): 1050
Voltage: 415V 3 Phase
Motor Power: 7.5 kW
Motor Speed: 2915 RPM
Overall Dimensions (mm) - Upright as in photos: 1600 L x 840 W x 3285 H approx.

MICRONAIR LARGE INDUSTRIAL DUST EXTRACTOR EXTRACTION SYSTEM - 3.285M HIGH

This blower is in great working condition. We have 2 of these blowers available for sale at the time of listing.
Make: Kongskilde
Model: TRL 20
Made in Denmark
SPECS
Inlet Diameter: 200mm
Outlet Diameter: 160mm
Voltage: 415V
Motor Power: 1.5kW
RPM: 2830
Overall Dimensions (mm): 640 w x 500 d x 700 h

KONGSKILDE TRL 20 CENTRIFUGAL BLOWER FAN - 1.5KW

This unit is in good condition. Came from the plastics industry.
It has a built on blower to provide vacuum.
Make: Piovan
Model: F38
Year: 1999
Made in Italy
Voltage: 400V 3 Phase
Power: 3kW
Overall Dimensions (mm): 900 L x 450 W x 1000 H

PIOVAN F38 CYCLONE VACUUM UNIT DUST COLLECTOR

In great working condition.
It is made from flame-retardant polypropylene.

FUNKEN 0.55KW - PLASTIC POLYPROPYLENE CENTRIFUGAL BLOWER FAN

Large industrial 50 sock dust collection system, great for large workshops.
It is only a few years old, brand new they are around $17,000.
The flow through sock design continuously cleans your filters for you as the extractor operates.
You can set it up to discharge into a 1.5 cube dump bin or into 3 PVC bags.
It is powered by a 15HP blower with a VSD controller for setting the fan speed.
Make: LEDA
Model: TD1100
Volume: 12000m3/hr
Inlet: 400mm diameter
Voltage: 415V
Power: 11kW
Overall Dimensions with legs attached: 2710 x 1010 x 3800 H

LEDA TD1100 INDUSTRIAL DUST EXTRACTOR COLLECTION SYSTEM

Industrial grade dual outlet axial inline booster in great condition.
Suitable for ducting of short runs with minimal beds.
Can be mounted in-between lengths of ducting.
Compact design, perfect for tighter roof clearances.
Make: Speedlock
Made in Australia
Voltage: 415V 3 Phase
Fan Opening Diameter (mm): 155
Overall Dimensions (mm): 1250 L x 500 W x 400 H

SPEEDLOCK INLINE DUCT BOOSTER AXIAL FAN

This unit is in good condition. It came from the plastics industry.
It has a built on blower to provide vacuum.
Make: Piovan
Made in Italy
Voltage: 400V
Power: 1.5kW
Overall Dimensions (mm): 750 L x 450 W x 97 H

PIOVAN CYCLONE VACUUM UNIT DUST COLLECTOR

This industrial Siemens ELMO-G side channel blower is in great condition, built for reliable continuous operation in demanding environments. It generates clean, oil-free airflow for both vacuum and pressure duties, making it ideal for continuous duty cycles and tough applications where durability and reliability are essential. Widely used across manufacturing, packaging, and processing industries, this blower is a proven solution for moving large volumes of air efficiently with minimal maintenance.
Typical uses include:
Pneumatic conveying of powders, pellets, and grains
Vacuum lifting and handling systems
Aeration in aquaculture and wastewater treatment
Printing, paper, and packaging processes
Plastics and film processing
A trusted Siemens design, the ELMO-G range is known for quiet operation, low maintenance needs, and long service life.
Make: Siemens
Type: ELMO-G 2BH1 910-1HC26
Inlet/Outlet Size - Diameter (mm): 98mm
Rated Voltage: 415V 3 Phase
Motor Power: 17.8kW 34A
Overall Dimensions (mm): 850 L x 620 W x 640 H

SIEMENS 17.8KW TWO STAGE SIDE CHANNEL BLOWER VACUUM PUMP

In great working condition.
It is a loose unit that you can install in your own housing.
Wheel Diameter: 650mm
Wheel Depth: 220mm

MONARCH CENTRIFUGAL BLOWER FAN - 11KW

Product Description:
Industrial De-bagging Unit with Auger, plus Advanced Dust Control System; it can be used in various industries for maintaining clean and safe working environments by capturing airborne dust particles and contaminants, while seamlessly removing and disposing of bag packaging and carrying out the contents where it needs to be.
How it works:
At waist height, the front door panel tray pivots open to allow horizontal placement of bag onto a spiked tray that punctures and secures the bag from beneath while the bag is slit open from above.
With motorised auger spinning and filtration unit fan functional, when the door is closed, the bags contents falls through the rear section of the chamber and is seamlessly carried through by the screw auger and extracted through the side;
The bag packaging itself falls through a chute in the front section of the chamber, while airborne dust particulates and contaminants are sucked through a filtration unit from above. A filter chamber captures the dust particulates, while very fine dust and fumes are extracted through the top corner.
1. DCE: Dust Control Equipment:
Make: CONJAT Pty Ltd
Series: DCE Unimaster
Model: UMA 100H G1
Function: Advanced Dust Filtration
Serial No.: J11 610
Power: 415 v | 3 phase | 50 Hz | 0.75 kW
DoM: 28.09.1989
1. Motor:
Make: ASEA A/S Denmark
Series: MT80A19-2 Class F
Power: 0.75 kW | 2850 / 3460 rpm
Connection: 3-phase | 50/60 Hz | IEC 34 IP 55
Volts | Amps: 380-420 / 440-500 VY | 1.9 / 1.7 A
Volts | Amps: 200-240 / 220-250 V | 3.3 / 3 A
Cat. No: 1486721
2. Compactor Unit with Screw Auger:
Make: CONJAT Pty Ltd
Model: 15 COMPACTOR
Serial No.: CJ WBC / BE 100
DoM: 24.10.1989
2. Motor:
Make: ASEA BROWN BOVERI
Series: ABB Motors | Induction Motor
Power: 1.5 kW
Connection: 3 phase | 6 pole
Volts | Amps: 415V-Y 3.7A 240V- 6.4A
890 rpm | 50Hz
cat. No: AN4 1 1 124 - A A
Application:
The Dust Collector with Dust Container and Extractor - Series UMA 100H - Advanced Dust Filtration is a vital tool used in various industries for maintaining clean and safe working environments by capturing airborne dust particles and contaminants. Here are its practical uses and applicable industries:
Woodworking Industry: In woodworking shops, the dust collector effectively captures sawdust, wood chips, and airborne particles generated during cutting, sanding, and routing processes. This helps to improve air quality, prevent respiratory issues among workers, and comply with workplace safety regulations.
Metalworking Industry: Metal fabrication and machining operations produce fine metal particles, fumes, and dust. The dust collector removes these airborne contaminants, reducing the risk of respiratory problems and maintaining a clean workspace for workers.
Pharmaceutical Manufacturing: In pharmaceutical facilities, maintaining clean and sterile environments is crucial. The dust collector aids in capturing airborne particles and powders generated during the processing and handling of pharmaceutical ingredients, ensuring product purity and compliance with regulatory standards.
Food Processing Industry: Food processing plants utilize dust collectors to remove food particles, spices, and other airborne contaminants from the air, preventing cross-contamination and maintaining hygiene standards. This is especially important in facilities producing powdered food products or spices.
Chemical Industry: Chemical manufacturing processes often involve handling powders, granules, and fine particles that can pose health hazards if inhaled. The dust collector helps to capture these airborne contaminants, ensuring worker safety and preventing environmental pollution.
Construction Industry: Construction sites generate dust and debris from activities such as cutting, grinding, and drilling. The dust collector helps to minimize airborne dust levels, improving air quality for workers and reducing the risk of respiratory issues.
Automotive Industry: Automotive manufacturing plants use dust collectors to capture dust and particles generated during painting, sanding, and grinding processes. This helps to maintain a clean and safe working environment and ensures high-quality finishes on automotive components.
Textile Industry: Textile manufacturing facilities generate airborne lint, fibres, and dust during spinning, weaving, and cutting processes. The dust collector aids in capturing these particles, preventing contamination of finished textile products and improving air quality for workers.
Overall, the Dust Collector with Dust Container and Extractor - Series UMA 100H - Advanced Dust Filtration plays a critical role in various industries where airborne dust and contaminants pose health risks, environmental concerns, and quality control challenges. Its advanced filtration capabilities help to maintain clean and safe working environments, ensuring the well-being of workers and compliance with regulatory standards.
Dimensions:
Auger Screw / Extraction Pipe Outlet Diameter (mm): 435
Door Opening (mm): 710 L x 420 H
Overall dimensions (mm): 1980 L x 1185 W x 2870 H

CONJAT INDUSTRIAL DE-BAGGING UNIT WITH AUGER & ADVANCED DUST CONTROL SYSTEM - CONJAT
