MERCURI TRADING

Product Description:
- Conveyor with Pneumatic Actuation
Dimensions (mm):
- Belt Travel: 1240
- Belt Width: 795
- Belt Height: 1035
- Product Dimensions: 1260 L x 1150 W x 1070 H
Motor Details:
- Brand: FESTO
- Part No.: DSBC-32-25-PPVA-N3
- Specification: Pneumatic Piston Rod Cylinder | Double Acting | Air Cushioning | 32mm Bore, 25mm Stroke | 12 Bar Maximum Operating Pressure
Interface Panel Display:
- Make: Weintek Labs., Inc.
- Model: MT8050iE
- S/N: 1506013490
- Display: 4.3" TFT Small-sized HMI
- Resolution: 480 x 272 / 16.7M
- Processor: 32-bit RISC 600MHz
- Flash/RAM: 128MB / 128MB
- USB: USB 2.0 Host x 1
- Ethernet: 10/100 Base-T x 1
- COMM Port: COM1: RS-232 2W, RS-485 2W/4W, COM3: RS-485 2W; supports MPI
Enclosure:
- Make: RITTAL
- Model: AE1007.600 RITTAL COMPACT ENCLOSURE
- Dimensions (mm): 500 W x 500 H x 210
- Material: Stainless Steel
FURTHER INFORMATION
Motor Details:
- Festo Pneumatic Piston Rod Cylinder, Air Cushioning, 12 Bar Maximum Operating Pressure - DSBC-32-25-PPVA-N3
Get precise machine movement with this pneumatic piston rod cylinder from Festo. It's double-acting, so you can count on it to handle pushing and pulling as well as lifting and lowering tasks. Integrated cushioning at both ends absorbs energy and keeps motions free from vibrations so your material-handling and tooling jobs run smoothly. The cushioning is adjustable, making it easy to tailor to your applications. Slots in the cylinder body let you flush-mount an SMT-series proximity sensor (121-5836) for spot-on positioning every time.
Features & Benefits:
- Operates at pressures between 0.6 and 12 bar for compatibility with low-to-medium-power pneumatics
- Wrought aluminium barrel, high-alloy steel rod and TPE-U seals ensure it's strong and durable
- Does the job reliably in temperatures from -20°C to +80°C
- Suitable for use with lubricated and non-lubricated air for flexibility
Applications:
- Pharmaceutical industry
- Biotechnology
- Manufacturing lines
- Packaging plants

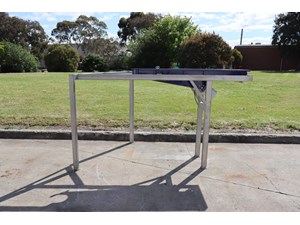

STAINLESS PNEUMATIC ACTUATOR DRIVEN BELT CONVEYOR 1.24M LONG

In good working condition. It is driven by an Interroll drum motor.
Votage: 415V 3 Phase
Travel Length: 2250mm
Belt Width: 395mm
Usable Channel Width: 330mm
Cleat Height: 20mm
Discharge Height: 950mm

FLEMING MOTORISED INCLINE BELT CONVEYOR - 0.95M HIGH

Tray Size (mm): 1700 l x 260 h x 850 w (tapers to 560mm wide)
Motor: (2 x) 0.25kW 415V

INDUSTRIAL VIBRATING VIBRATORY TRAY FEEDER 1700 L X 260 H X 850 W

In great working condition.
It has a variable speed controller.
Travel: 1400mm
Belt Width: 190mm

STAINLESS STEEL MOTORISED VARIABLE SPEED BELT CONVEYOR 1.4M LONG

In good condition.
It has two belts side by side.
It does not have a motor and would need to be supplied separately.
Travel: 580mm
Belt Width (each): 400mm x2

TECNOLOGIC 0.5M LONG STAINLESS STEEL DOUBLE DUAL BELT CONVEYOR

In great working condition, made out of stainless steel with a food grade belt.
Travel: 5200mm
Belt Width: 620mm
Belt Height: 915mm

G MONDINI STAINLESS STEEL MOTORISED BELT CONVEYOR - 5.2M LONG

In good working condition.
Belt Width: 170mm
Power: 415V 1.5kW

ICA STAINLESS STEEL MAGNETIC ELEVATOR CONVEYOR

The unit is made out of stainless steel and belt is a plastic modular link design.
It has a variable speed controller built in.
Travel: 1500mm
Total Belt Width: 490mm

STAINLESS STEEL MOTORISED VARIABLE SPEED MODULAR BELT CONVEYOR 1.5M LONG

In great working condition.
Travel: 2900mm
Belt Width: 1457mm
Belt Height: 700mm

STAINLESS STEEL MOTORISED MODULAR BELT CONVEYOR 3M LONG 1.457M WIDE

In great working condition.
Runs off 240V power and is variable speed.
Travel Length: 1150mm
Belt Width: 82mm

MOTORISED VARIABLE SPEED NARROW SLAT BELT BOTTLE LINE CONVEYOR 1.15M LONG

In good working condition.
Travel: 4200mm
Belt Width: 400mm

MOTORISED BELT CONVEYOR 4.2M LONG

In great working condition.
The belt is made of two rows of chain which has small blocks of aluminium attached to it.
Travel: 6000mm
Centre Chain to Chain Width: 300mm
Belt Height: 840mm

COMAS 6M LONG STAINLESS STEEL MOTORISED CHAIN CONVEYOR
